LEGO Clutch Test Implements

LEGO is well known for quality—but how do they test the parts? With these rare LEGO Test Implements, that’s how!

The LEGO Group has a reputation for high quality products. While a few mistakes sneak through, errors in instruction booklets, missing parts, or poorly moulded parts are very rare. That’s because they have incorporated quality control throughout the company.

For example, last year we heard from Bjarke Schønwandt, the quality director on the Consumer-Perceived Quality team during the LEGO House Virtual Fan Day. (I find their focus on “perceived” quality versus “actual” quality fascinating, but it makes sense from a business perspective!)

Perhaps the most important quality related detail are the bricks themselves! That’s why they do extensive testing of brand new part designs and constant testing of parts as they are being manufactured. (LEGO parts aren’t just made in Denmark; they are manufactured at multiple factories around the world!)

Test Implements

Given their commitment to product quality, it is no surprise that The LEGO Group has produced custom parts to aid in testing efforts! While these parts are not usually available to the general public, let’s take a closer look at four of these rare parts!

The four LEGO Test Implements that I was able to measure.

The four LEGO Test Implements that I was able to measure.

Test Implement w/ Stud (Part 86191)

It’s no surprise that there is a simple test implement with a stud on the end. In the case of this part, it has a hollow stud on the end. The part is 47.5mm long and the version I have appears to be made using ABS plastic in 28Dark GreenGreen color.

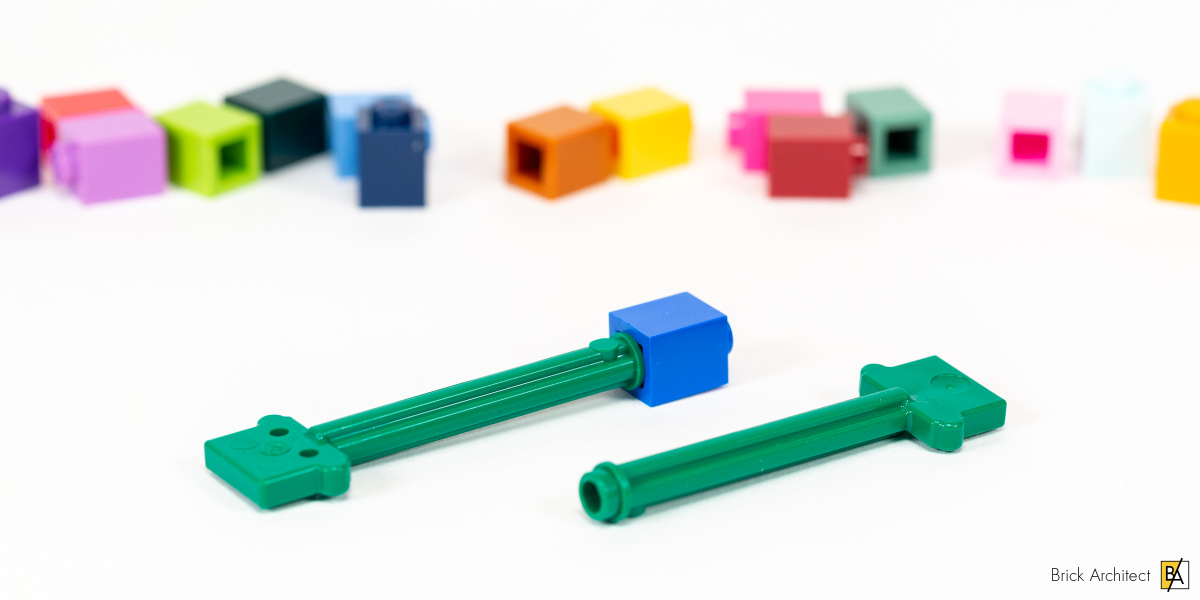

Test Implement w/ Stud (Part 86191)

Test Implement w/ Stud (Part 86191) in Dark Green (Green).

I actually have three of these parts, which is how I noticed that they have different numbers hidden inside the hollow stud on the end. One of them has the number ‘1’ and the other two have the number ‘2’ inside. (After several measurements, I was unable to detect a difference in the in inner and/or outer diameter, but it is likely that a small difference exists.)

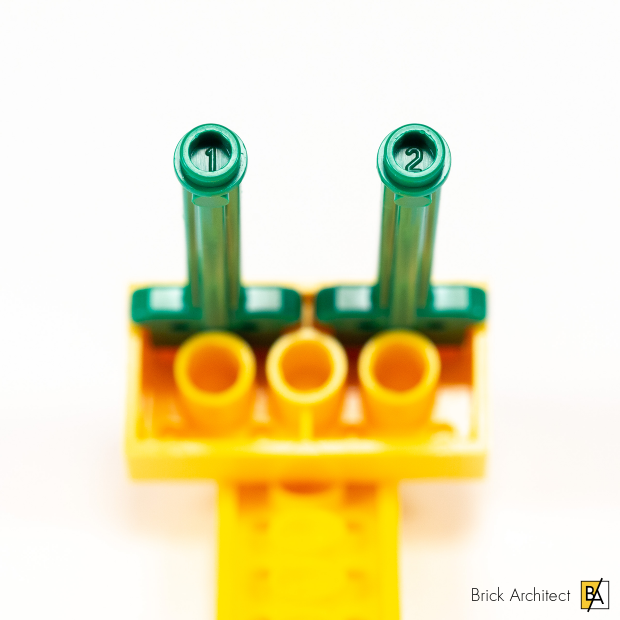

Numbered stud variations for part 86191.

Numbered stud variations for part 86191.

Test Implement w/ Bar 7L (Part 86188)

This test implement has a very long bar connection on it. It is the only one of these parts which came in a milky plastic, which I believe is uncolored ABS plastic. Including the testing connector, it is 66mm long.

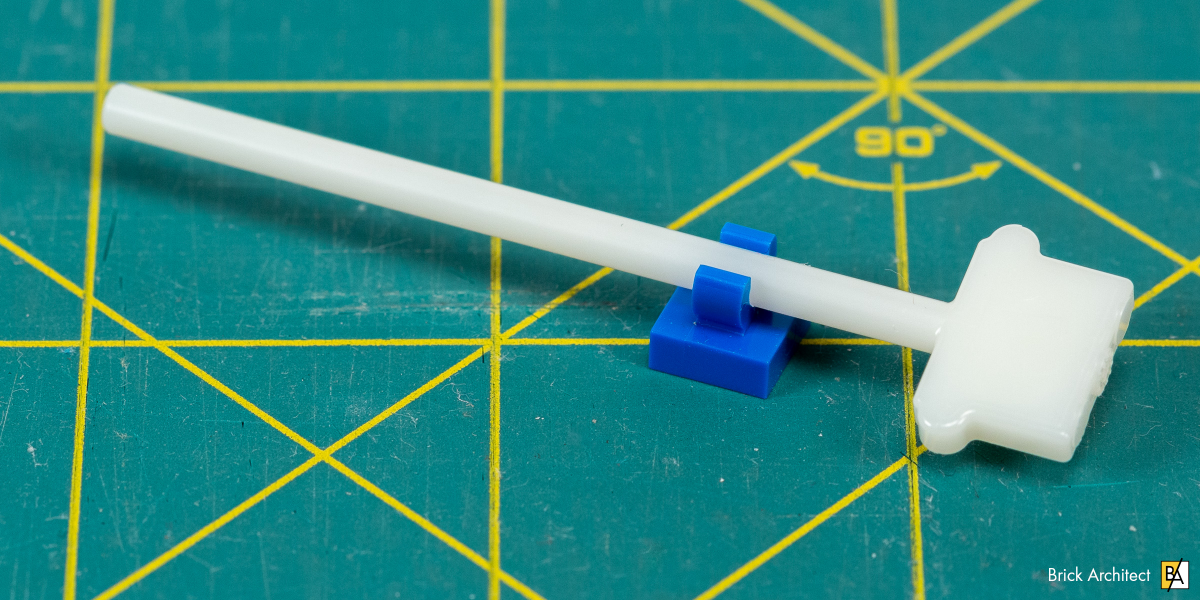

Test Implement w/ Bar (Part 86188) in Uncolored (Whitish) ABS.

Test Implement w/ Bar (Part 86188) in Uncolored (Whitish) ABS.

This is the only one of the four test implements which does not include the two holes in the testing connector on the base, and the part number is in a different location that’s harder to see. (It might be an earlier version of the mould.)

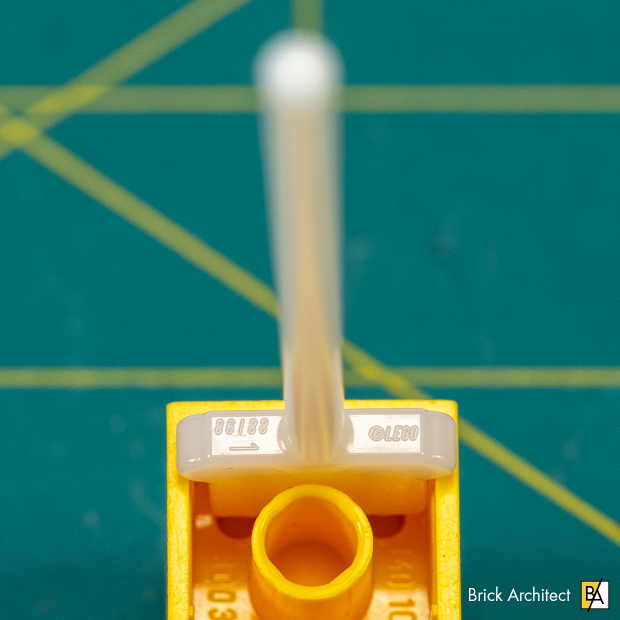

The part number is difficult to see.

The location of the part number made it very difficult to see.

Test Implement w/ Towball (Part 15137)

Continuing our look at these rare test implements, here’s the first of two ball joints. Specifically, part 16137 is the smaller “towball” which is used with modern “Mixel joints” as well as many older parts.

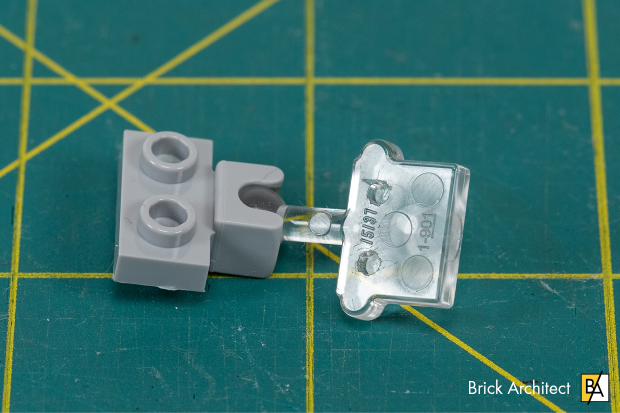

Test Implement w/ Towball (Part 15137)

Test Implement w/ Towball (Part 15137)

This part was borrowed from a friend, so I already took detailed notes of the part dimensions. I did this using inexpensive digital calipers which I purchased from Amazon. This is the same process that a group of dedicated LEGO fans use to the design the digital parts found in the LDraw suite.

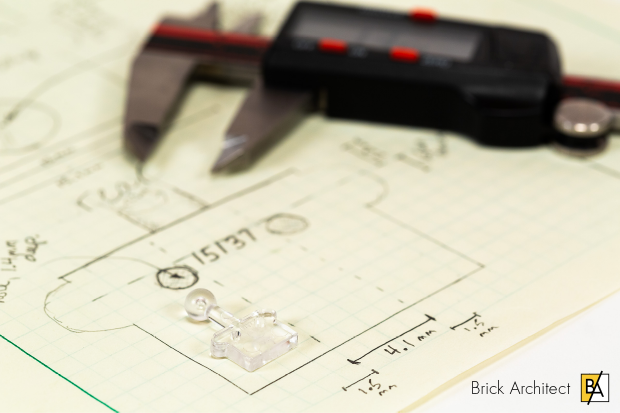

Measuring part 15137 using digital calipers.

Measuring part 15137 using digital calipers.

Test Implement w/ Ball (Part 86189)

Lastly, we also have the larger ball joint which was popularized by the Bionicle series. This test part features a thicker shank than the smaller towbar piece, presumably to reduce the risk of it breaking during testing.

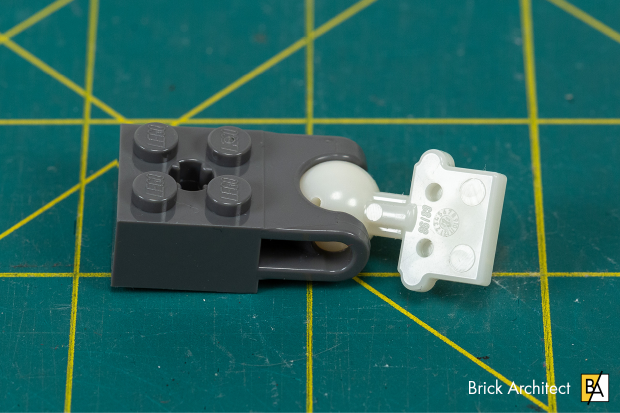

Test Implement w/ Ball (Part 86189)

Test Implement w/ Ball (Part 86189)

Testing Connector

Each of the four parts has the same proprietary testing connector on one end, and a different LEGO connection type on the other end. I’m a little surprised that the parts are significantly different lengths… I would have thought that making them all the same length would have made testing scenarios easier.

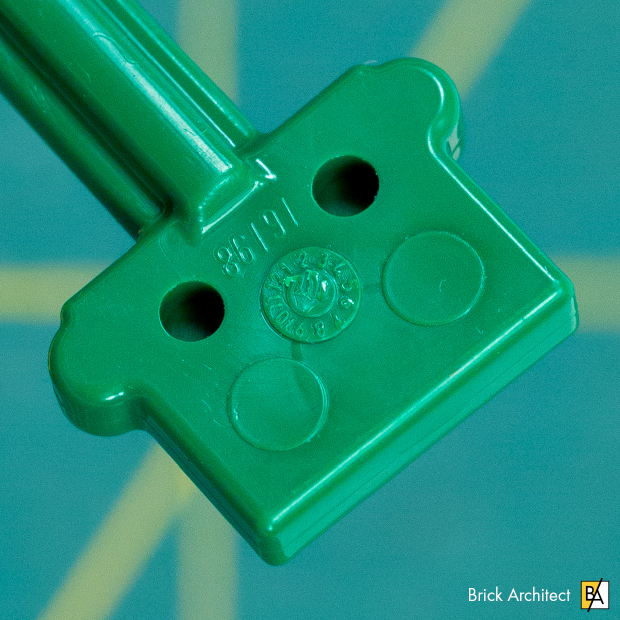

Testing connector on part 86191.

Testing connector on part 86191.

As far as I can tell, the testing connector is not designed to connect with other LEGO elements, but rather to be attached to testing hardware (which is probably made out of metal). Three of the four parts have two cylindrical holes at the same position on the base. (While it is just a guess, I suspect that spring-loaded metal pins or small screws attach the test implement to the testing hardware using these holes.)

I suspect these parts are used for at least two purposes:

  1. to validate the clutch power of various parts (ex: Newtons of force to attach or remove the part)
  2. to assess durability concerns by repeatedly connecting and removing the part until it breaks.

While the connection is proprietary, it happens to fit pretty well into the bottom side of a 2×2 brick. This is probably a coincidence, since the dimensions of the connector do not line up very well with standard LEGO units.

While I’m only able to provide detailed information about these four test implements, it’s fair to assume that The LEGO Group has produced similar test implements for all System and Technic connection types.

More like this?

Subscribe to the Brick Architect newsletter for early access to exclusive content, the latest articles, and updates to the Printable LEGO Brick Labels, LEGO Storage Guide, and my book The LEGO Architect.

 I give Brick Architect consent to send email using the information provided in this form.



What to expect: Brick Architect is committed to respecting your personal data and privacy, in accordance with our Privacy Policy. Please feel free to unsubscribe at any time using the link at the bottom of every email we send.

Other Known Test Implements

In fact, a couple other variations have been revealed. In this article at New Elementary, you will find a photo of two similar test implement featuring other common connection types.

Other Clutch Test Implements (Photo: New Elementary).

Other Clutch Test Implements (Photo: New Elementary).

  1. Test implement with underside of 1×1 Brick.
    (part number not known, listed as bb1176 on BrickLink).
  2. Test implement with Technic Pin
    (part number not known, listed as bb1175 on BrickLink).

Other LEGO Quality Resources

In researching this article, I found a few interesting resoures about LEGO Quality Testing. I’m always eager to learn more about this seldom-discussed aspect of The LEGO Group’s strive for quality.

More Articles:

I hope you enjoyed this nerdy look at rare LEGO testing implements. Do you have more information on other LEGO Testing parts, or how they are used by The LEGO Group? Let me know by sending an email or leaving a comment below!
The parts described in this article were provided by an enthusiastic LEGO fan who received these parts directly from The LEGO Group. This was probably an accident, as non-production parts are not meant to be available to the public. Please don’t ask—these parts are not available for sale!
